This guide will walk you through the process of using the SharePoint Connector from Konica Minolta.

The application page is here. However, user's most likely need to purchase this without salestax. This will need to be done with our Konica Minolta Business Representative.

Kate Dougherty [email protected]

Additionally, you will need the serial number for the device (not the ID number on the KMBS sticker). The S/N looks like this one

ADXK013000000

You will also need the physical address of the printer. Please confirm this with the purchaser. Email both of these things to Kate Dougherty [email protected] who will get the purchase order together to be paid with a P-Card.


Once the connector is purchased, it can be installed from the Konica Minolta Store on the printer. Once installed, the below steps will assist with configuration.

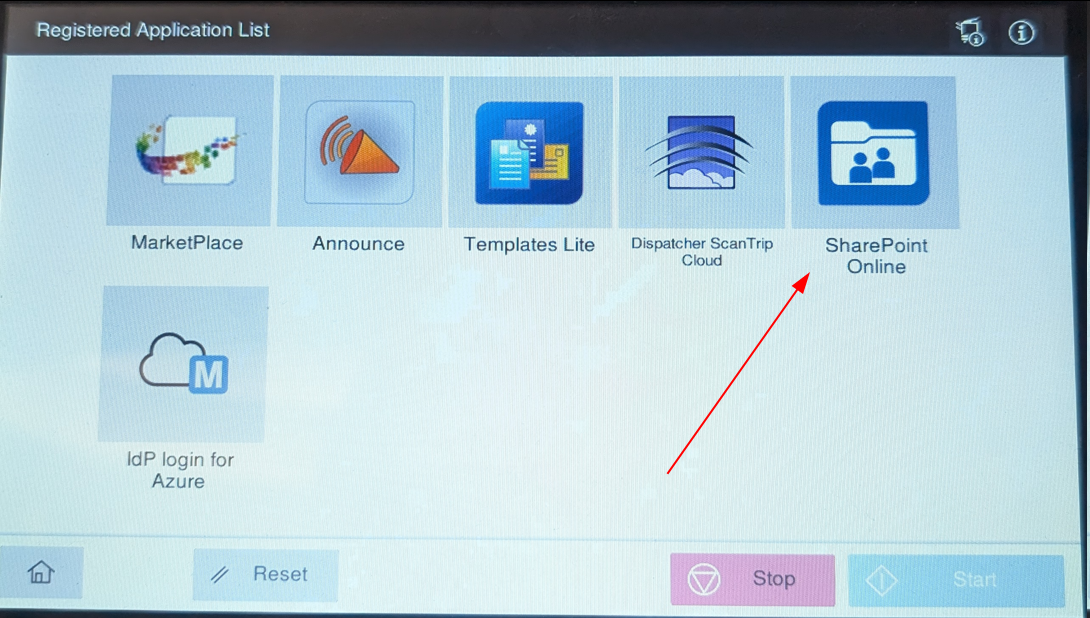

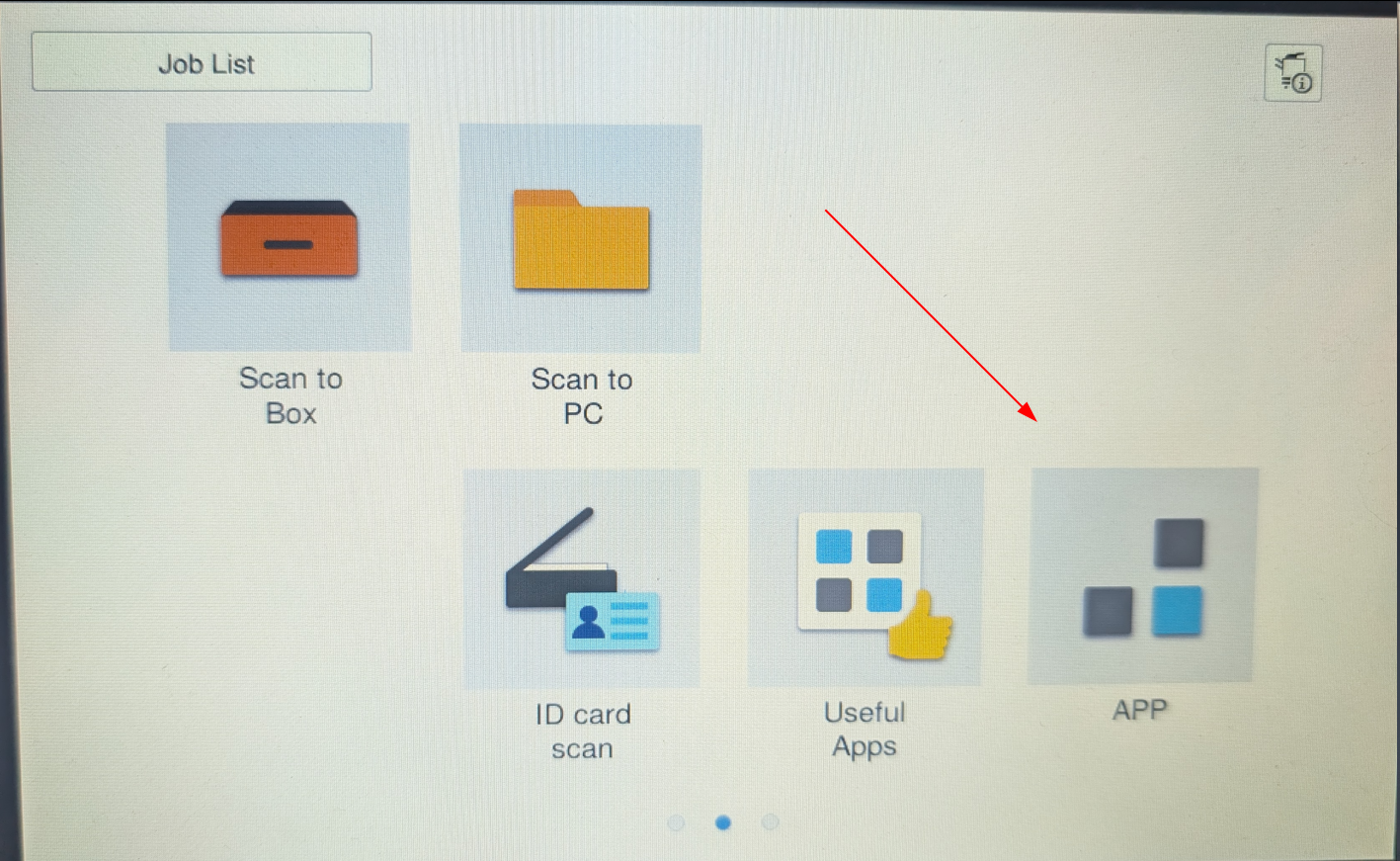

First you will need to locate the app from the installed apps on the printer.

After selecting the SharePoint Online connector app on the printer, you will be presented with a sign on screen. Enter your UCCS email address and click next. The next screen will prompt you for the password to your account. After signing into your UCCS account, you will be presented with the following page.

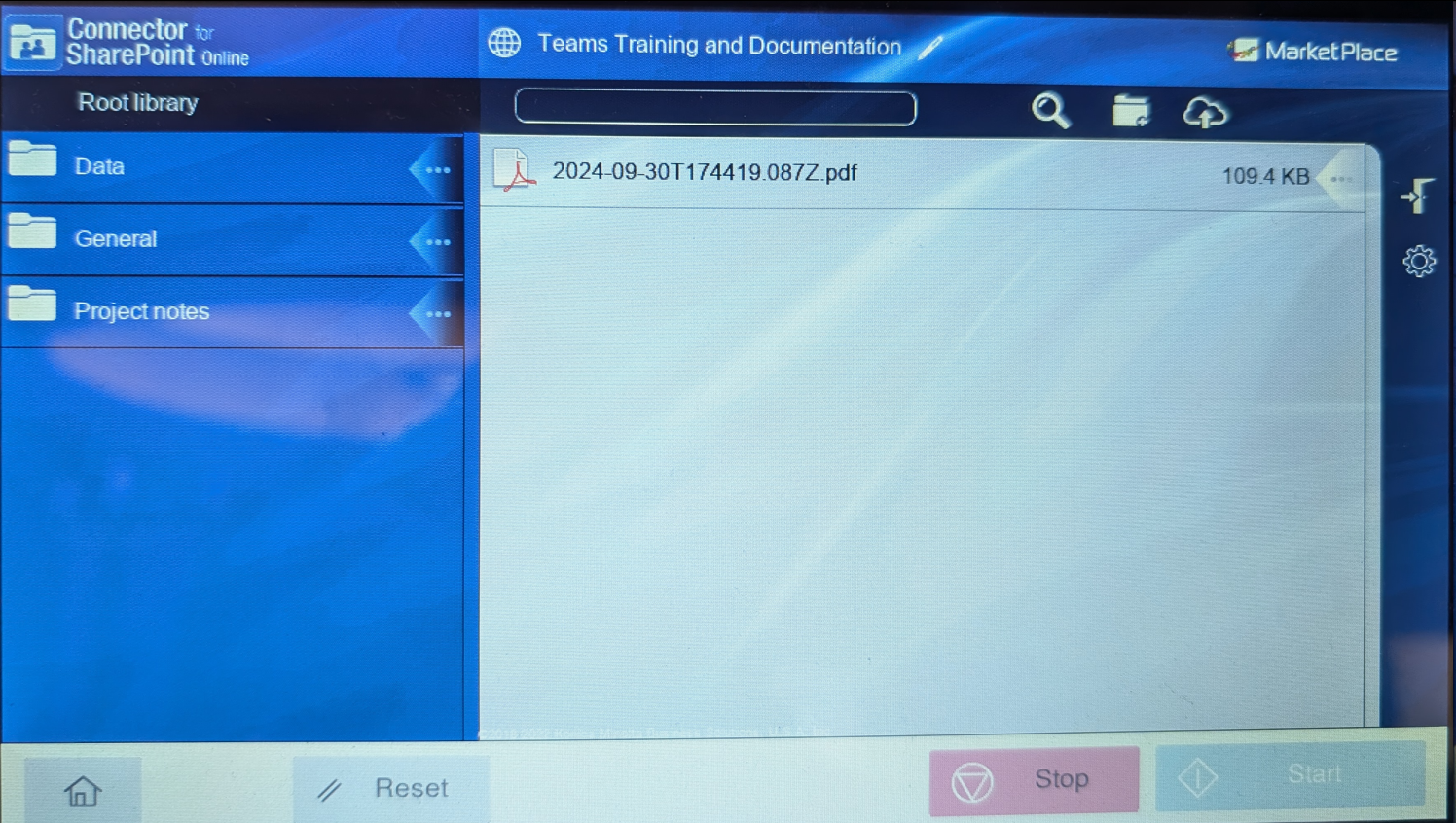

Home page for the SharePoint connector that shows some folders, a file, and the name of the SPO site at the top.

From this page, it is possible you are not already located within the site you wish to upload the documents to. Clicking the pencil icon at the top of the page next to the currently displayed SPO site name will present you with a list of sites that you are a member of.

A screen with a list of site names

After selecting the site you wish to upload into, you will be back on the previous screen with folders and files to the site. Navigate to the directory you would like to scan to by selecting the folders on the left side, and touch the icon of the cloud with the arrow pointing towards it.

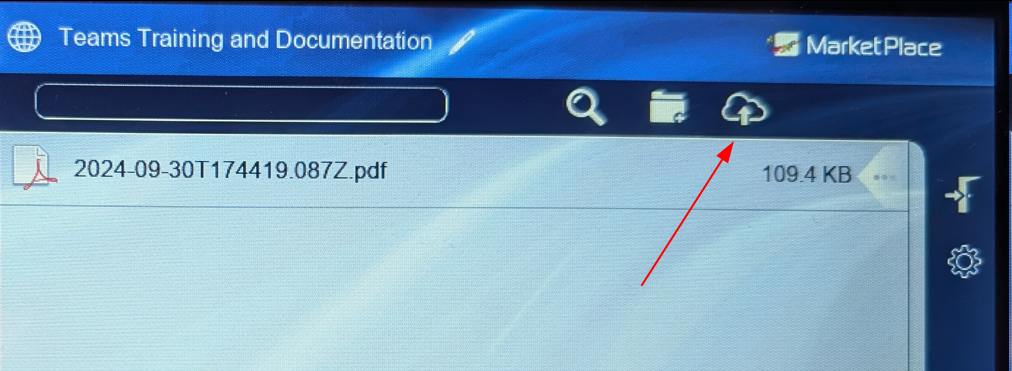

An arrow pointing to the upload button for the SharePoint connector.

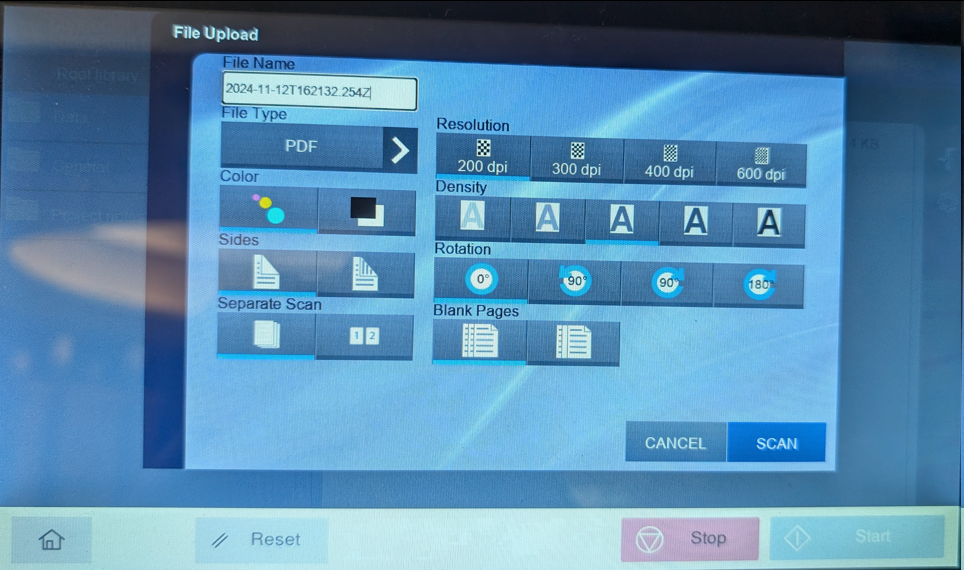

Next you will be presented with the PDF settings dialog. While most changes are typically not needed, you are welcome to customize the document from this page. When ready, press the scan button, and your job will complete, and upload to the designated location in SharePoint.
