Project Overview

40 new outdoor APs installed
Project timeline:
- Start and early talks: Fall/Winter 2017
- Design, initial site survey, planning: Spring 2018 through Fall 2018
- Installation began: Late Fall 2018
- Installation complete: Early Spring 2019

Quick Stats

40 new APs (bringing total outdoor AP count to 67)
Total outdoor coverage approximation post install: ~8 acres
New coverage along approximately 5000 feet of sidewalk and walkways
Unique clients seen on outdoor APs (samples taken on similar Mondays between 6a-6p)
- Before upgrade: 466
- After upgrade: 7,413

Aruba models used: AP-365 (x34) and AP-374 (x6)

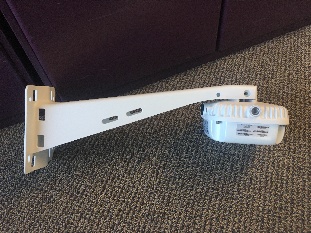

Aruba Mounts used
- AP-270-MNT-V1
- AP-270-MNT-H1
Mounting style breakdown
- 6 bollards
- 24 direct to building

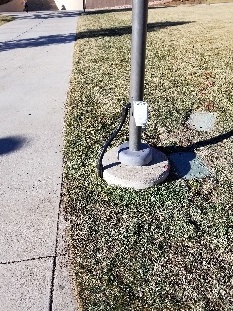

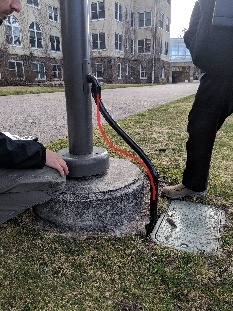

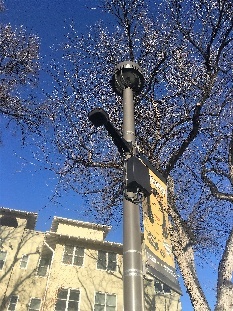

- 10 on existing light poles
APs with direct CAT6A (POE) runs: 28
APs utilizing powered fiber: 12

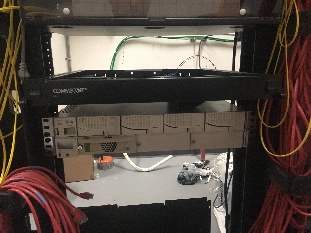

Powered Fiber Information
- GE Pulsar Edge Shelf with SPS Controller
  - Model: SPS841A_0I6R_USB_DS
- Commscope 2-port universal mount POE extender
  - Model: PFU-P-C-0-060-02
- Commscope Powered Fiber Cable
  - 4 fiber single mode
  - 16 awg

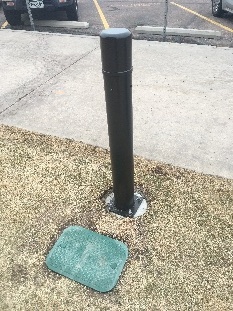

Bollard Information
- Bollard pole body and base = custom
- Dry box = Dura Dry Box (12"W X 17"L X 12"H)
- Antenna = Tessco/TerraWave M6060060MO1D3607O
