Features
This is a computer lab classroom with one screen, one professor PC at the front desk, and 30 student PCs around the room.
- 31 iMac Computers
- DVD drives in half the room
- Audio System with Speakers
- Pull down projection screen
- Full HD Laser Projector
- Hyflex VTC System with Camera and Microphone
- HDMI Laptop Connection
Location: Columbine 2nd Floor
Remotes

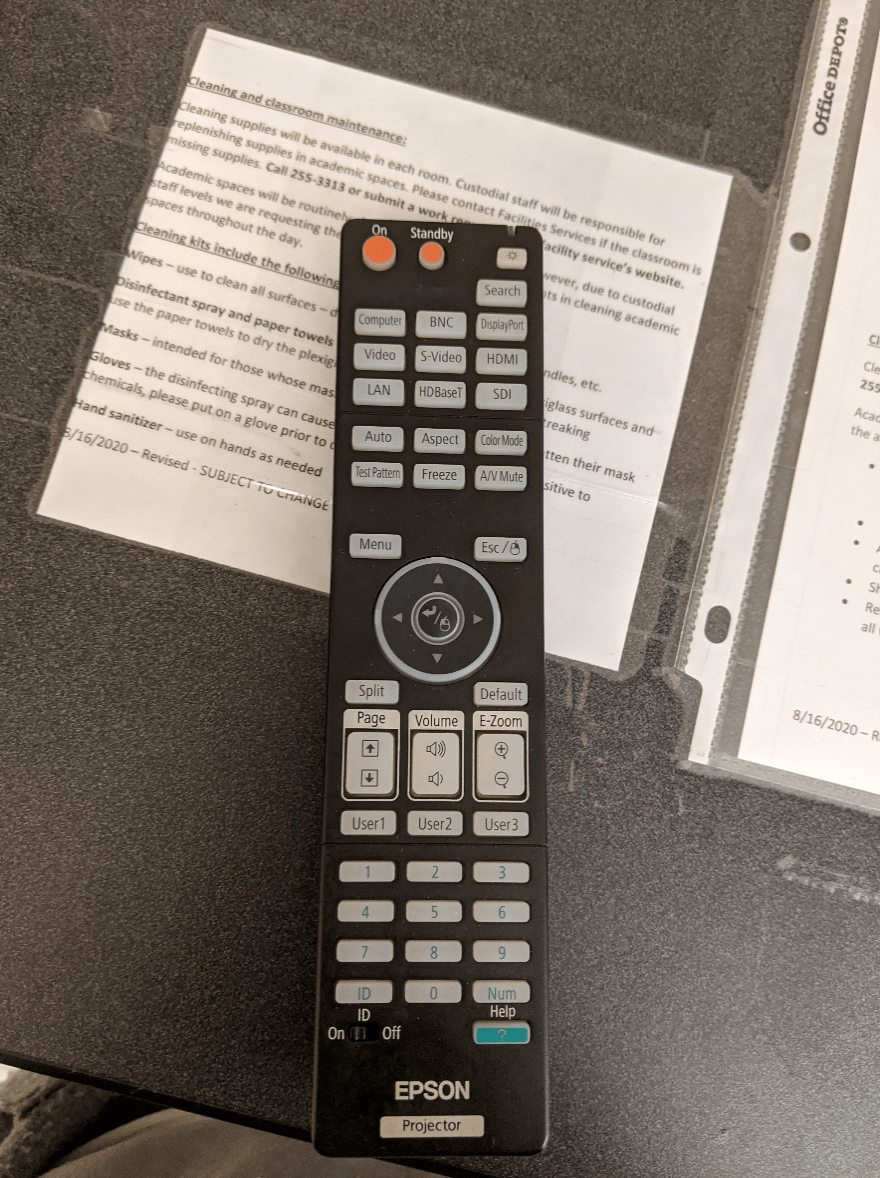

Projector Remote
Controls the projector and volume in the room. Located on top of the front desk.

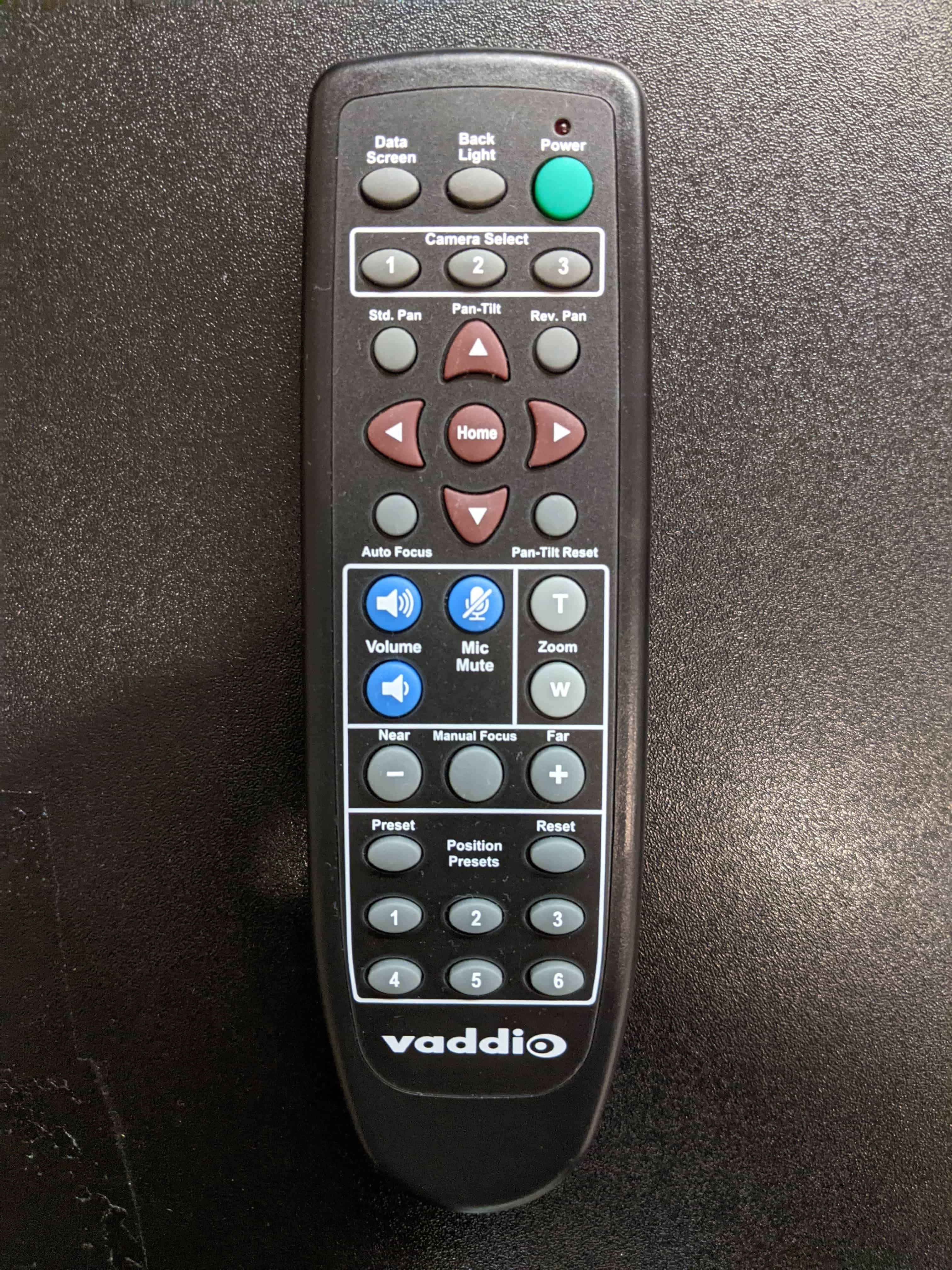

Hyflex Remote
Controls the Hyflex VTC System. Located on top of the front desk.
Controlling the A/V System
Using the Remote

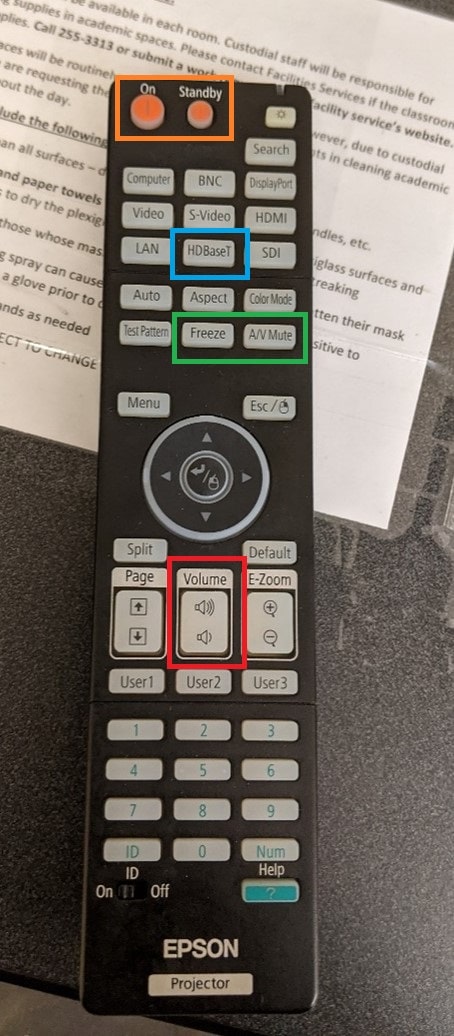

The remote for the projector controls most functions in the room. The remote is labeled below with the colors corresponding to a particular section explaining that function.
Turning the system on and off
To turn the system on, press the red "ON" button on the remote (outlined in orange to the left). This will only turn on the projector. You must physically pull on the string/handle on the screen to lower it.
To turn off the system, press the green "STANDBY" button twice (outlined in orange to the left). This will turn off the projector. To raise the screen, pull on the string/handle and the screen should raise. You may have to push on it a bit to get it all the way up.
Source Selection
The source should always be HDBaseT (outlined in blue to the left). The projector will automatically use the laptop HDMI connection if it is connected. Otherwise, it will use the podium PC as the source.
Volume Control
Volume can be controlled on the projector by pressing the volume button, then using the left and right arrows (outlined in red above). It may also be controlled on the PC using the volume controls
on the bottom right corner of the screen.
Projector Control
The most commonly used projector functions are Blank (A/V Mute) and Freeze. Blank is on the bottom middle of the remote, and Freeze is on the bottom left of the remote (both outlined in green above).
- Blank will shutter the projector and mute the audio. Use this feature when you want to use the whiteboard or front of the room without shutting down the system. Please only use this feature for up to 20 minutes, otherwise it's best to shut down the system.
- Freeze will freeze the currently displayed image on the screen. Use this feature if you'd like to hold a frame still on the screen or use the podium PC for another activity without displaying it, such as checking your email
Inputs
Using the Podium PC and Lectern
The podium PC is on the desk at the front of the room and is the primary source for this AV system and should use the VGA connection. This computer runs the same image as all other podium computers in general fund classrooms and labs. You can sign in using your UCCS credentials.
Using a Laptop
This room is only equipped with an HDMI cable for a laptop. You can connect your laptop to this HDMI cord and the HDBaseT source will automatically switch the projector to using your laptop as the input.
Using the DVD Player
The DVD Player is on the desk in the front of the classroom. Insert disk into the DVD drive. The contents of the disk should appear on the computer.
Screen Control

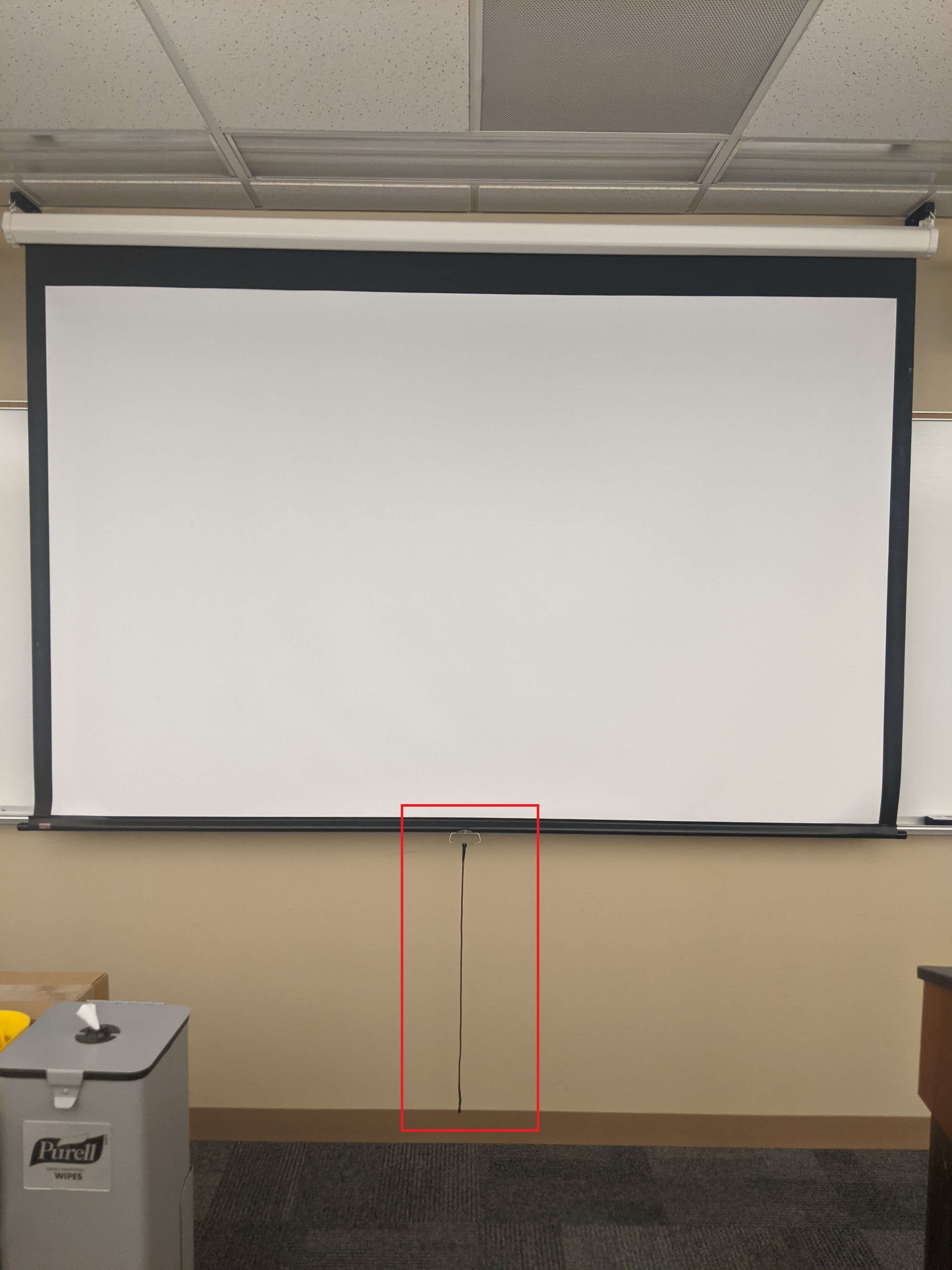

The screen in this room is manually operated. The handle, with a string attached, is outlined in red in the photo above.
Troubleshooting
Audio Issues
Fixing Audio Issues: Uncontrolled Room
Video Issues
Fixing Video Issues: Uncontrolled Room
Vaddio/Hyflex VTC System
Photos

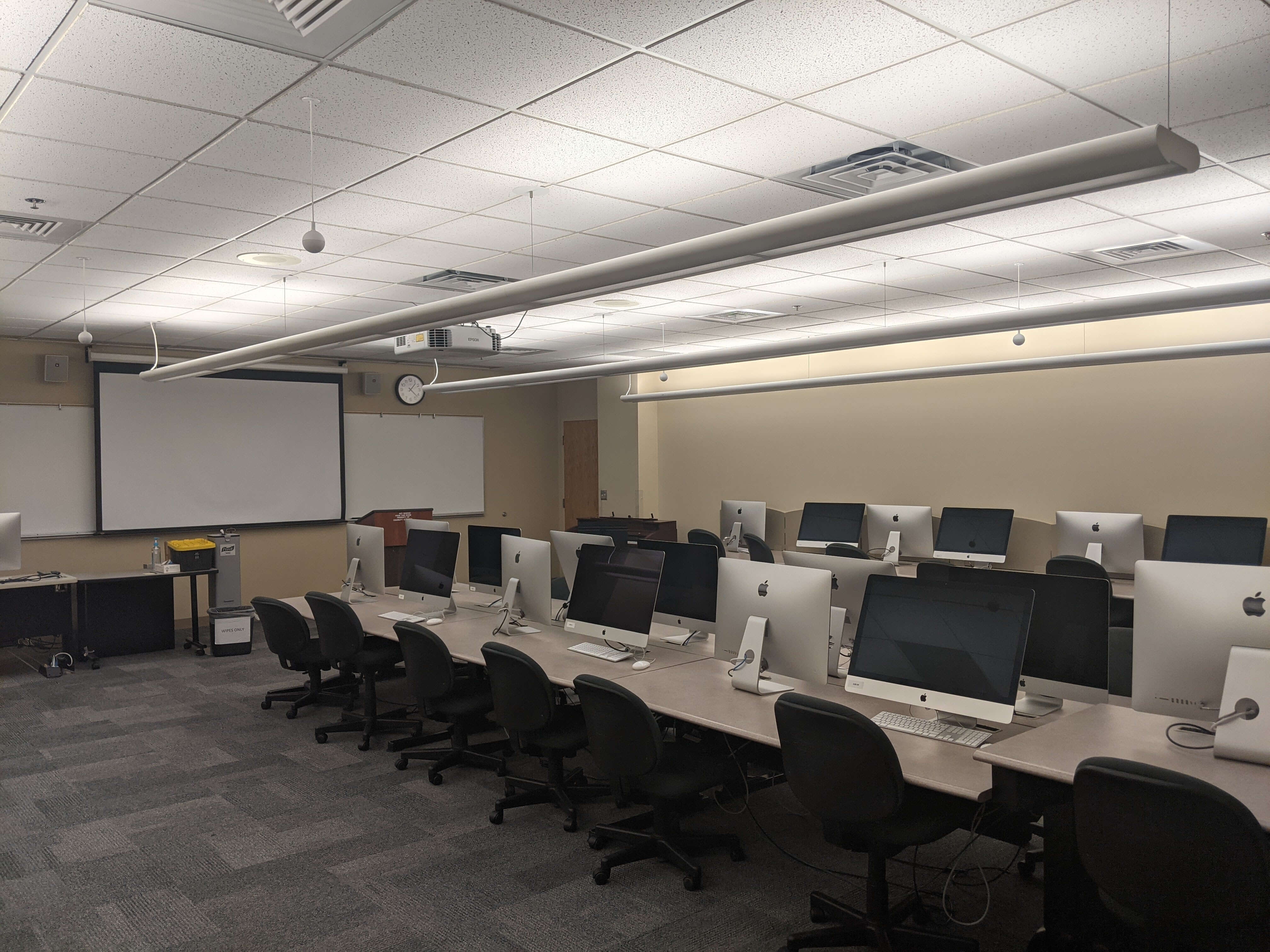

This is an angle of the room while standing at the door.

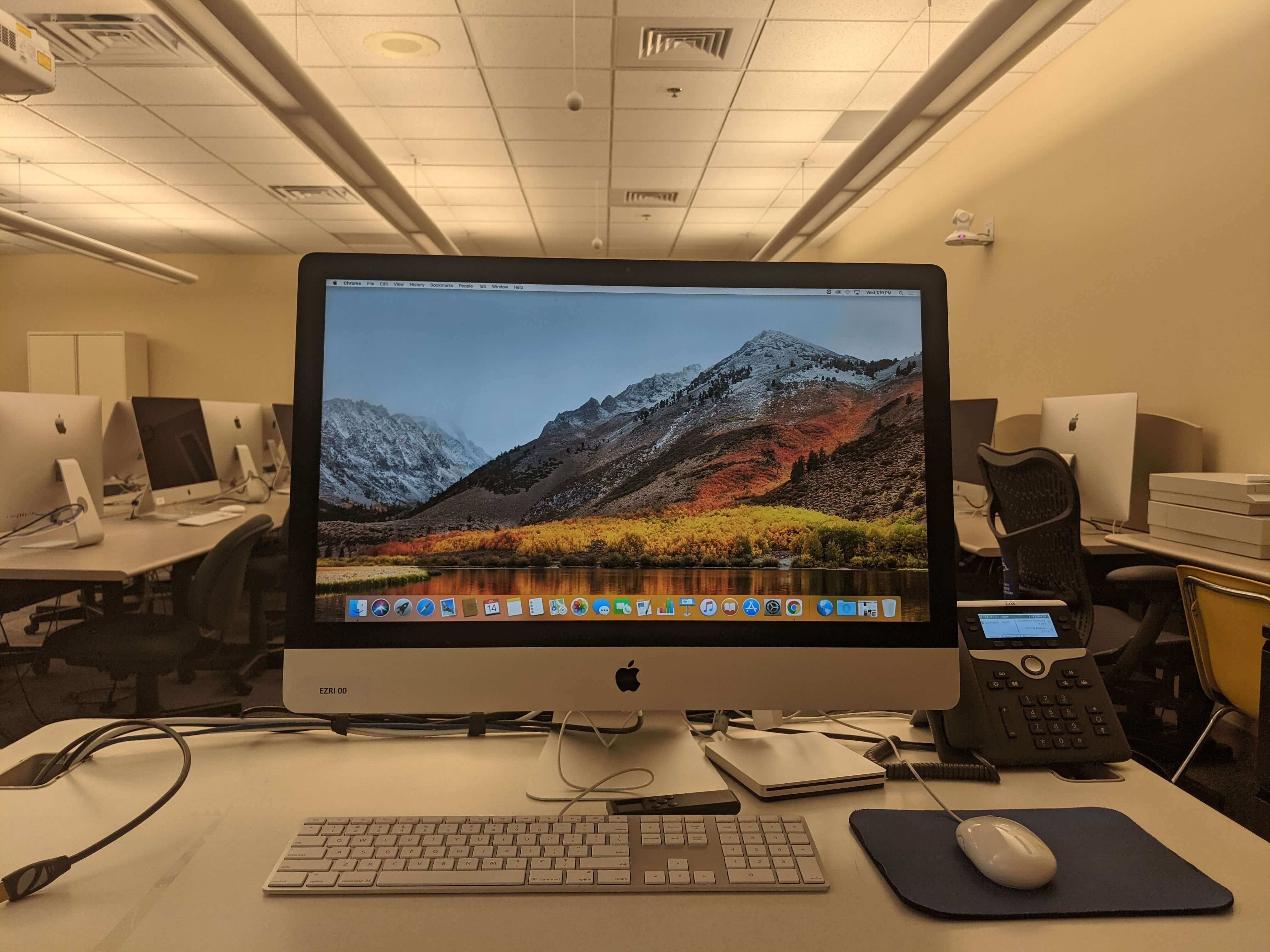

This is the rooms' podium computer.
The room speakers are located in the ceiling on each corner of the classroom.

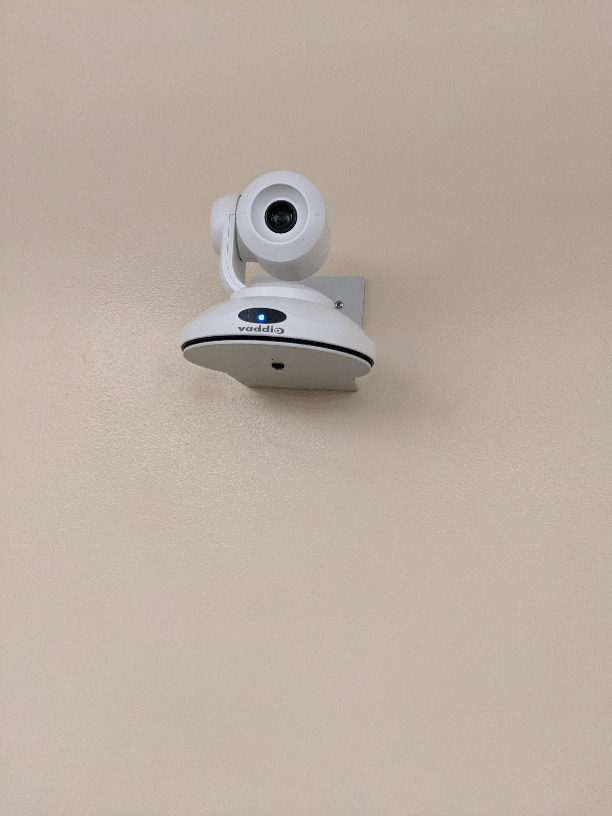

This is the camera in the room.

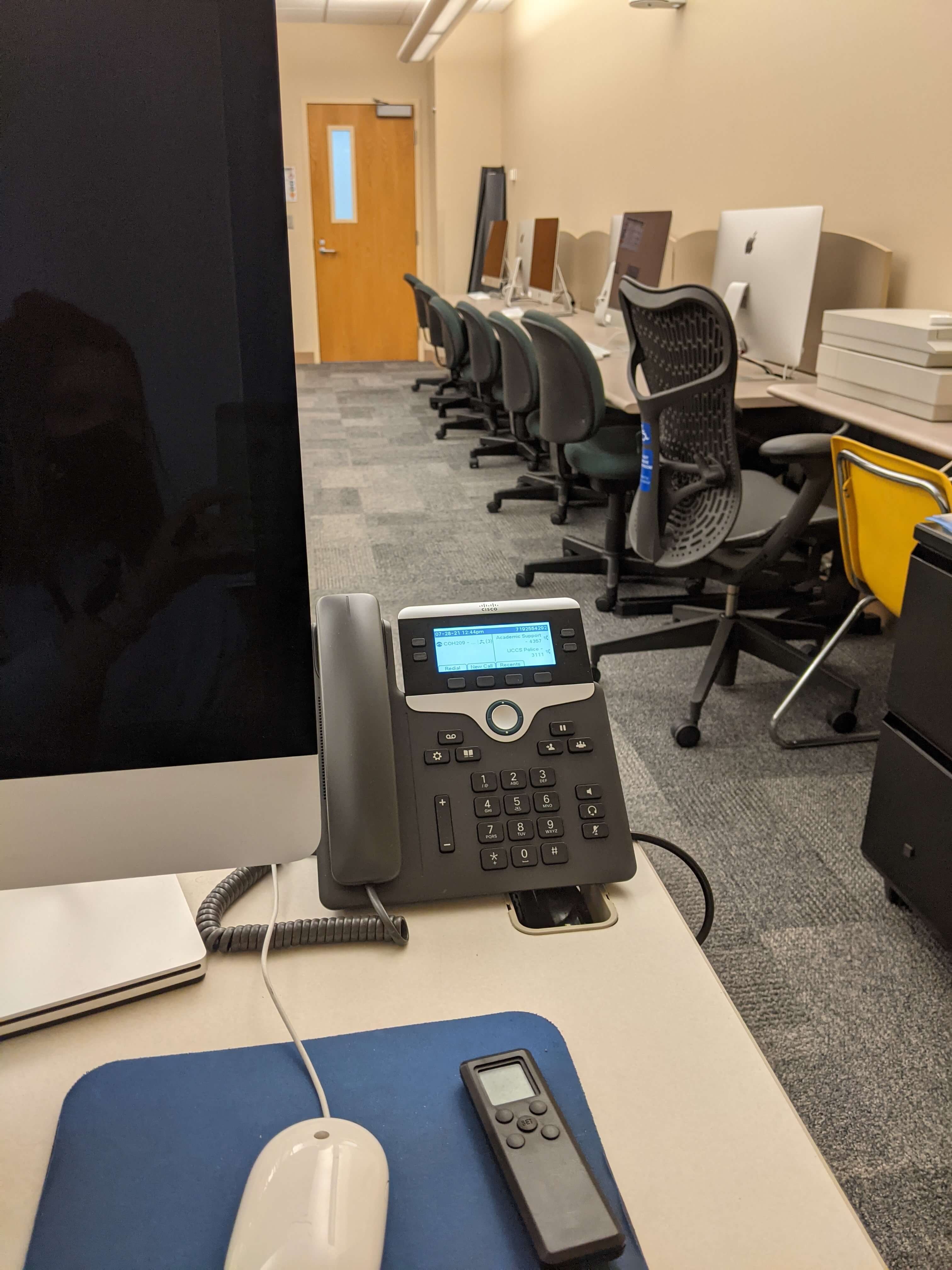

This is the phone, located on the right side of the podium PC.

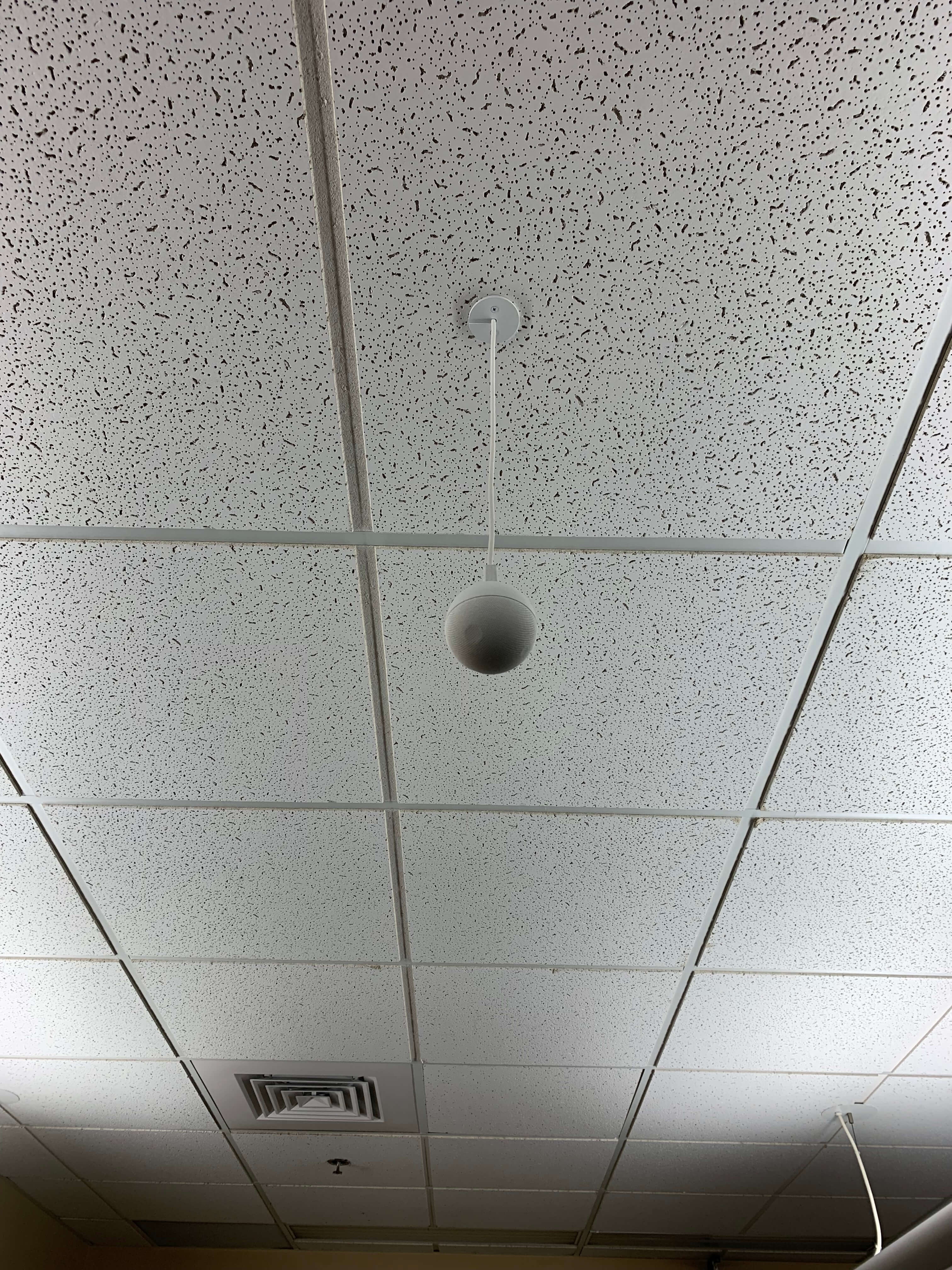

This one of the room microphones attached to the ceiling. There are a total of four placed throughout the room.
